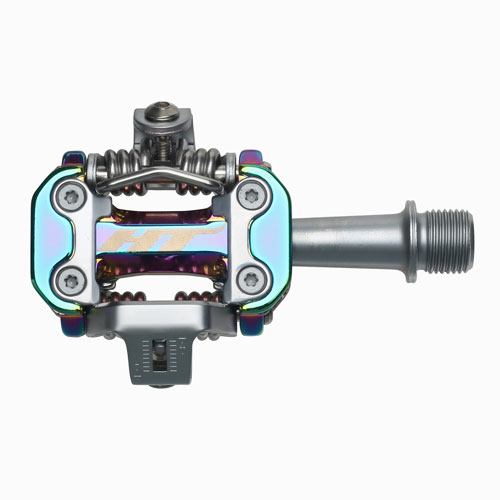

M2 Clipless XC Pedals are HT’s elite level pedal. These pedals have been tested at World Cup and World Championship levels, ridden by World Champions Nino Schurter and Kate Courtney, tested in every condition imaginable and are arguably one of the best XC/CX clipless pedal options available. They weigh in at a remarkable 305 g per pair. Are made from extruded CNC optimized aluminum for ultimate strength to weight ratio. They have world-class mud, snow and ice clearing. They are very easy to engage and disengage. They also offer the most adjustable dual tension clip-in mechanism on the market. The adjustable clip tension allows riders to fine-tune their pedals dependent upon course/trail conditions. Available in multiple colors!
Note: If you use these pedals in conjunction with a street style shoe it is highly recommended to use the metal cleat shim that comes with the shoes or cleats. It will greatly improve the clip-in and release action.
Non-Special Edition MSRP: $140.00
Black Stealth MSRP: $145.00
Oil Slick MSRP: $175.00
|Pedal Weight (pair)
|Cleat Weight (pair)
|56 x 41 x 17.5 mm
|aluminum extruded / CNC machined
|CNC machined cr-moly
|686zz sealed bearing + IGUS bushing
|X1E / X1 / X1F (HT exclusive system)
HT PA03A Pedal features a low profile design using super tough reinforced nylon. The PA03A is designed to withstand the most extreme conditions. It uses premium dual-sealed bearings/DU bushings to keep the elements out and to provide smoother and more durable rotation. It features an over-sized 12mm spindle to increase stiffness and strength. It comes with 8 replaceable steel pins and 2 molded pins that offer grip in the most challenging of situations.
Pedal Weight (pair) 350 g Size 107 X 105 X 18 mm Body Material Nylon reinforced composite Spindle CNC machined CrMo Pedal Bearings dual sealed bearing + one DU bushing Pins replaceable grip pins and molded pins Options colors
HT ME03T is an elite level pedal with a magnesium body and titanium spindle. The HT EVO-MAG series of pedals have been designed to offer the best performance for Elite level riders. With HT magnesium extrusion technology, the EVO-MAG series is able to reduce the weight by 18%. The 11mm ultra-thin platform provides a low center of gravity and reduces the Q-factor. Caution: 80 kg (176 lbs) rider weight limit.
Size: 102 x 96 x 11mm (center)
Weight: 218 g / per pair
Material: CNC machined magnesium
CNC Spindle: CNC machined titanium
Bearing: N+EVO / dual DU bushings
Pins: Replaceable – 10 pins each side – EVO1 GRIP
The HT NANO series of pedals have been designed to offer the optimum balance of lightweight and reliable performance in all kinds of weather conditions. The low-profile design with a deep concave shape allows your foot to “sit-in” the pedal and improves grip/comfort. With heavy-duty sealed cartridge bearings and oversized spindles, the HT NANO pedal is one of the most durable pedals in the world.
Size: 94 x 95 x 17mm (center)
Weight: 360 g / per pair
Material: CNC machined / sandblasted anodizing
CNC Spindle: machined with chromoly [silver]
Bearing: 2 sealed / dual DU bushings
Pins: Replaceable – 10 pins each side
|5 × 6 × 3 in
